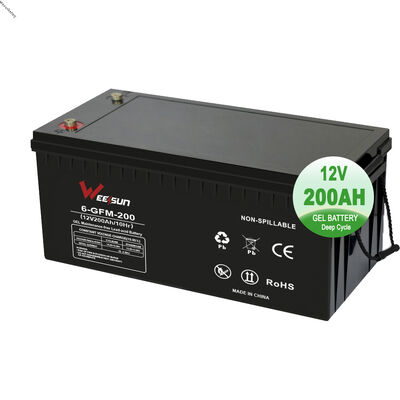

12V 200AH AGM GEL Battery Large-Capacity Maintenance-Free Lead Acid Energy Storage Battery

Brand Name:	WEESUN
Model Number:	6-GFM-200
MOQ:	10
Price:	$105-138 dollars
Payment Terms:	T/T
Supply Ability:	2000 unit/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001 MSDS CE

Document:

Warranty:

12 Months

Capacity:

200AH

Weight:

Color:

White,black,Yellow,Orange,Black Or As You Like

Voltage:

Certification:

ISO9001/ISO14000,

Application:

Solar System

Maintenance Type:

Free,Maintenance Free Motorcycle Battey,General

Battery Type:

Deep Cycle Battery Maintenance Free Battery,Sealed Maintenance Free Lead-Acid GEL Motorcycle Batteries,Lead Acid Maintenance,Rechargeable Deep Cycle Lead Acid Battery

Available

Sealed Type:

Sealed

Terminal:

Lead Terminal,Cooper

Dimension:

520mm×240mm×220mm

Packaging Details:

Carton Boxes

Supply Ability:

2000 unit/month

Highlight:

12V 200AH AGM GEL Battery

Maintenance-Free Lead Acid Battery

Large-Capacity Energy Storage Battery

Product Description

AGM GEL 12V200AH Large-capacity Energy Storage And Backup Power Supply

Product Overview

This 12V 200AH battery is an AGM valve-regulated sealed maintenance-free lead-acid battery with the general industry model 6-GFM-200. It is a core industrial-grade large-capacity energy storage and backup power supply. Adopting advanced absorbed glass mat technology and a fully sealed valve-regulated design, the battery requires no electrolyte refilling or routine maintenance and effectively prevents liquid leakage and corrosion. Featuring low internal resistance, strong discharge performance, ultra-low self-discharge rate, wide temperature adaptability, and excellent deep discharge recovery capability, this battery delivers outstanding stability and durability. It is widely used in commercial and industrial backup power and off-grid energy storage systems, serving as a preferred power solution for power grids, communication stations, photovoltaic systems, security systems, and industrial equipment.

Core Technical Parameters

All technical indicators are tested under a standard ambient temperature of 25℃ and comply with universal industrial standards:

Parameter	Specification
Rated Voltage	12V
Rated Capacity	200Ah (20-hour rate, cut-off voltage: 10.8V)
Internal Resistance	≤3.5mΩ
Self-Discharge Rate	≤3% per month
Design Service Life	8-10 years (float charging); 3-5 years (cyclic charging)
Discharge Performance	0.05C to 3C continuous; 30C peak
Dimensions	520mm×240mm×220mm (L×W×H, tolerance ±2mm)
Weight	Approximately 58kg
Housing Material	Flame-retardant ABS (UL94-V0 grade)
Terminal Material	Silver-plated copper terminals

Core Product Advantages

Maintenance-Free Operation: Fully sealed valve-regulated structure with no electrolyte refilling required. Can be installed vertically or tilted up to 90° without leakage.
Powerful Discharge Performance: Low internal resistance with excellent high-current discharge capacity. Superior recovery after deep discharge.
Low Self-Discharge: Monthly power loss less than 3% at room temperature. Maintains charge during long-term storage.
Safe & Explosion-Proof: Built-in safety valve with flame-retardant ABS housing. Operates in -20℃ to 60℃ temperature range.
High Consistency: Supports series and parallel connection for flexible power system configurations.

Main Application Scenarios

Photovoltaic Energy Storage: Off-grid solar systems, solar street lights, residential and commercial backup
Power and Communication: UPS, EPS, communication base stations, railway signal backup
Security and Emergency Systems: Fire emergency lighting, security alarms, monitoring backup
Industrial Equipment: Industrial robots, automated equipment, construction machinery
Other Applications: RV energy storage, marine backup, medical equipment, outdoor power devices

Usage and Maintenance Instructions

Optimal operating temperature: 20℃ to 25℃
For long-term storage, supplementary charging recommended every 3-6 months
Avoid overcharging, overdischarging, and short circuits
Use matching intelligent chargers to extend battery life
For grouped use, employ batteries of same batch and specification

Qualification and After-Sales Service

The product complies with strict industrial production standards and has passed ISO9001 quality management system certification, flame retardant safety certification and other authoritative tests. Adopting precise production processes and full inspection before delivery, all products are qualified and reliable. Customization and OEM services are available. Standard products are equipped with complete after-sales warranty, and professional technical support is provided for industrial-grade working conditions. With high cost performance, it is an ideal choice for industrial backup power and energy storage projects.
